"Take a Closer Look"





Radiation Tolerant Cameras



The AquaRAD®, the ColorRADtm and the MegaRADtm radiation tolerant cameras.


The AquaRAD® Underwater Camera

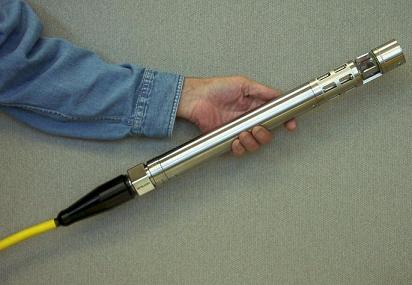

The AquaRAD® HS radiation tolerant

 underwater camera (shown with

optional motorized right angle viewer)

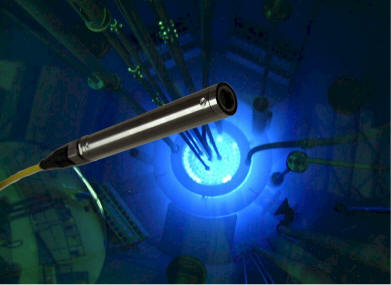

The AquaRAD® HS radiation

tolerant underwater camera



The AquaRAD® is the world's first and only highly radiation tolerant color solid state camera for use in underwater applications. The AquaRAD® is available exclusively from Symphotic TII Corporation.
The AquaRAD® and AeRADtm cameras are now available with a series of options for your application: static or motorized right angle viewer, underwater pan and tilt, and zoom or standard lens configuration. It can also be built in a low profile configuration for tight inspections.

Also available as a monochrome version, the AquaRAD® series of cameras can take a closer look at your high radiation inspection targets underwater.

Key Features

  • Radiation tolerant to beyond 3 x 106 Rad--3 x 10Gy

  • Close focus for underwater inspection

  • Right angle viewer

  • Color, solid state imager--simple to setup, simple to use

  • NTSC or PAL versions available.

  • Analog Video or USB Video output


The ColorRADtm  Custom Radiation Tolerant Camera Systems

Base ColorRADtm radiation tolerant camera head

The ColorRAD series are custom designed cameras for use in hot cells and radiation environments where conventional cameras would fail.  Using the same CID technology as our AquaRAD® cameras, but with the capability for longer cable lengths, and zoom lenses, we can configure a camera for your most demanding requirements.

Key Features

  • Radiation tolerant to beyond 3 x 106 Rad--3 x 10Gy

  • Configure with zoom or fixed focal length lens, rad tolerant glasses or replaceable lenses

  • Color, solid state imager--simple to setup, simple to use

  • Extended cable lengths to simplify penetration design


The MegaRAD Monochrome Camera

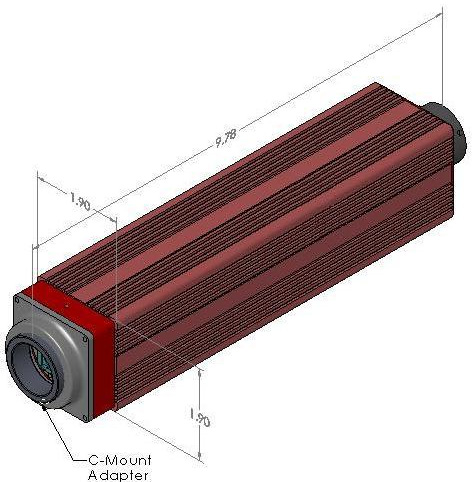

The MegaRADtm radiation tolerant air camera



Where simple installation, rugged design, and low cost, the MegaRAD camera is ideal for radiation environments in otherwise ambient environmental conditions.

Key Features

  • Radiation tolerant to beyond 1 x 106 Rad--1 x 10Gy

  • Configure with zoom or fixed focal length lens, rad tolerant glasses or replaceable lenses

  • Monochrome, solid state imager--simple to setup, simple to use

  • Extended cable lengths to simplify penetration design

  • Low cost


WHY CID?



AquaRAD® and AeRADtm images (above): The picture on the right is a screen shot taken at t=0, 10,000 Rad/hr (100Gy/hr) dose rate.  The picture on the left is the same imager taken at t=45hr, or 0.45 MegaRAD (4500Gy) total dose.



CCD camera images (above):  For comparison, the picture on the right is a CCD camera at t=0, 10,000 Rad/hr (100Gy/hr) dose rate, and on the left, the same imager after 1 hr, total dose = 0.01 MegaRAD (100Gy).
