Saab-Seaeye ROVs

Saab Seaeye and Symphotic TII:

Symphotic TII Corporation is the North American Sales and Service Center for Sea Wasp, Falcon, Falcon F2, and Falcon DR ROV systems.


Symphotic TII Corporation is now the North American Authorized Service Center and stocking distributor for the Saab Sea Wasp, a Waterborne Anti-IED ROV system.



The Saab Sea Wasp



Contact us or use the form below for Sales, Parts, Service, or Training for the Saab Sea Wasp.




Contact us for information about information about all Saab Seaeye ROV systems.

The Falcon, Falcon F2, Falcon DR, TigerLynx, Cougar-XT Compact, Cougar-XT, Cougar-XTI, Panther-XT, Panther-XT Plus, Leopard and Jaguar

We offer the most comprehensive line of ROVs available from any single source.  Take a Closer Look in your deepest waters with our full range of ROVs.

Click image for more information:

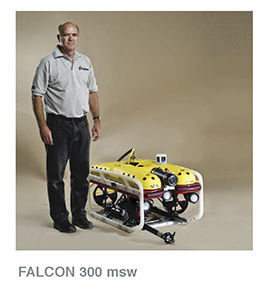

 Saab Seaeye Falcon

 31 lbs / 14 kg payload, 1000 ft / 300 m depth

Saab Seaeye (formerly Seaeye Marine) introduced the Falcon in May 2002 in response to users in need of the quality, capabilities, and consistency of other Seaeye ROVs in a portable package built to a smaller budget.

Seaeye Falcon Features:

  • 300 meter depth rating, 14 kilo payload
  • Max 450 meter umbilical (longer cables available with fiber optic upgrade)
  • Magnetically coupled brushless DC thrusters with velocity feedback loop
  • 4 Vectored and 1 vertical thruster
  • 50 kgf thrust: > 3 knots forward speed
  • Distributed intelligence control system
  • Integral system diagnostics
  • High resolution color camera on 180 Tilt Platform
  • Variable intensity high intensity LED lighting
  • Auto heading, depth, compass and rate gyro
  • Portable surface control system with video overlay and daylight readable display
  • Low drag umbilical
  • Single phase A/C power input - auto selecting universal 100-270 VAC at 2.8 kW

Click HERE for inquiries

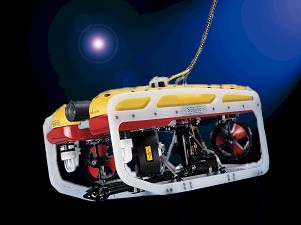

 Saab Seaeye Falcon F2 (NEW)

 31 lbs / 14 kg payload, 1000 ft / 300 m depth

The Saab Seaeye FALCON F2 has all the features of the Falcon ROV above, with the addition of high speed single mode fiber optic communications.  The fiber optics communications allow for longer excursions (up to 1100 meters or 3,300 feet in tether length) or high data rate instruments such as multibeam 2D imaging sonars and HD cameras.

Seaeye Falcon F2: All the features of the FALCON plus:

  • Max 1100 meter umbilical, depth rated to 300 meters
  • 10/100 base Ethernet
  • HD camera ready
  • Low drag umbilical, 14 mm diameter.

Click HERE for inquiries




Saab Seaeye Falcon DR










33 lbs / 15 kg payload 3,300 ft / 1000 m depth

Saab Seaeye introduced the Falcon DR in 2006 for use in applications requiring a depth rating of 1000 meters.

Seaeye Falcon DR--All the features of the Falcon with these additional capabilities:

  • 1000 m depth rating
  • 1100 m umbilical length
  • 10/100 base Ethernet
  • HD camera ready
  • High torque tilting mechanism with feedback unit for camera and lights
  • F2 fiber optic data and video transmission system

Click HERE for inquiries

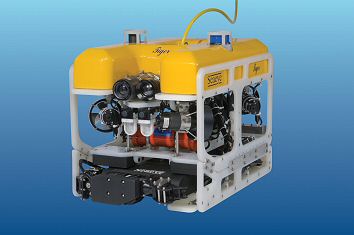

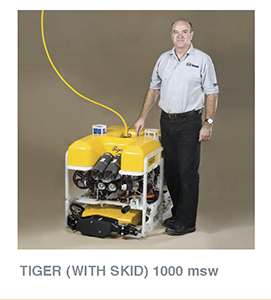

Saab Seaeye Tiger

70 lbs / 32 kg payload, 3,300 ft / 1000 m depth



Seaeye Tiger Features:

  • Maximum operating depth: 1000 meters
  • Dual video channels
  • 32 Kg (70 Lb) payload
  • 4 Vectored and one vertical Seaeye SM 4M thrusters with velocity feedback
  • 62 kg forward thrust: 3 knots forward speed
  • Auto heading and depth
  • Thruster trim functions
  • Fully interfaced for sonar and CP probes
  • 3 Phase power outlet option
  • Single or 4 function manipulator option
  • Choice of TMS systems
  • Free swimming mode
  • High output variable intensity LED lighting
  • Integral video overlay

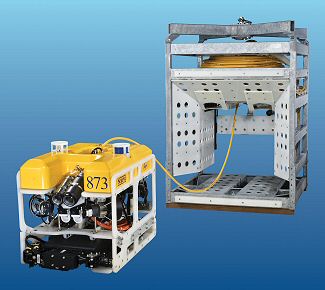

Tiger TMS system

Accessories for the Seaeye Tiger (partial list):

Launch and Recovery System (LARS).
ROV Control Cabins - 'Zone 2' or 'Safe Area'
Bale Arm (Type2) TMS system.
Industry Standard Cameras.
Single function electric manipulator.
Tool skid and multi function hydraulic manipulator.
CP probe. (Contact or proximity).
Sonar systems.
Tracking systems.

Click HERE for inquiries

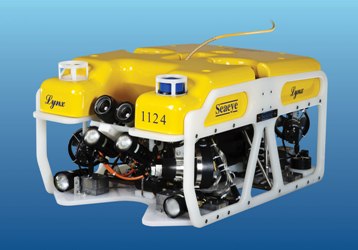

Seaeye Lynx

70 lbs / 34 kg payload, 5,000 ft /1500 m depth



Seaeye Lynx Features:

  • Max operating depth: 1500 meters
  • Four simultaneous video channels
  • Fiber optic video transmission
  • 34 Kg (74 lb) payload
  • 66 kg forward thrust, 3 knots forward speed
  • Seaeye brushless DC thrusters with velocity feedback control
  • Auto heading and depth with auto altitude option
  • Zoom/Focus camera interface
  • Hydraulic manipulator interface
  • Tooling skid options
  • Fully interfaced for survey sensors
  • 3 phase power outlet option
  • Dual channel variable intensity lights
  • 15 inch Video Monitor
  • Integral Comprehensive Video Overlay

Tether management system (TMS) Control Cabin, and Pilot's Console

Accessories for the Seaeye Lynx (partial list):

Launch & deployment system. (Safe Area or Zone 2 rated )
Zone 2 or Safe Area of operation ROV control cabin
Tether Management System Type 8
TMS Camera & Light
Scanning Sonar system
Dual Head Profiler System
Bathymetric System
CP probe. (Contact or proximity.)
Multi-function manipulator or Manipulator Skid
Flooded Member Detection Tool Orientation Skid
Custom Tooling Skids
2.5kw 440vac 3 phase outlet
Seaeye Pan & Tilt Unit. Industry Standard Cameras
Surface Unit Video Suite (Recorders and additional Monitors)
Video Matrix Switcher

Click HERE for inquiries

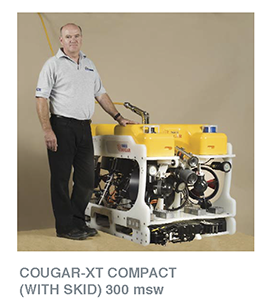

Seaeye Cougar-XT Compact

130 lbs / 60 kg payload, 1000 ft / 300 m depth

The Saab Seaeye Cougar-XT Compact is a powerful and flexible modification of the acclaimed Cougar-XT.  Suitable for depth of up to 1000 ft, this vehicle is designed for free-swimming requirements.

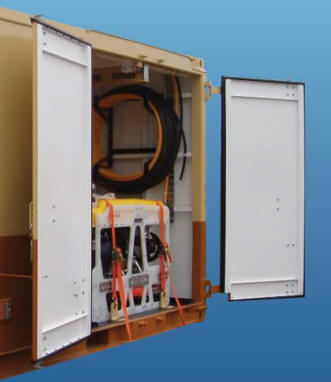

"ROV in a Box"

The Cougar-XT Compact can be installed in a partitioned 20 ft cabin with a Pilot's Cabin and a separat ROV storage and spooling winch and tools storage.  This allows quickest mobilization times and convenient transportation.



Seaeye Cougar-XT Compact Features:

  • Depth rating:  1000 ft / 300 m (seawater)
  • 4 vectored horizontal  and two vertical Seaeye SM7 brushless DC thrusters.
  • 170 kgf forward thrust: >3 knots forward speed
  • 130 lb/60 kg payload
  • Auto heading and depth and optional auto altitude
  • Up to four simultaneous video channels
  • Easy interface for tooling systems
  • Comprehensive video overlay
  • Full component compatibility with other Seaeye accessories



Cougar XT-Compact

Launch and Recovery System

Accessories for the Seaeye Cougar-XT Compact (Partial list):

Compact Launch and Recovery System

ROV in a Box Cabin and Storage container

4-Function Manipulator
Cable Cutter
Cleaning Brush
CP Probe
Cygnus UT Gauge
Emergency Strobe
Lock Latch
Multibeam Sonar
Profiling Sonars
Side Scan Sonar
Water Jet

Click HERE for inquiries

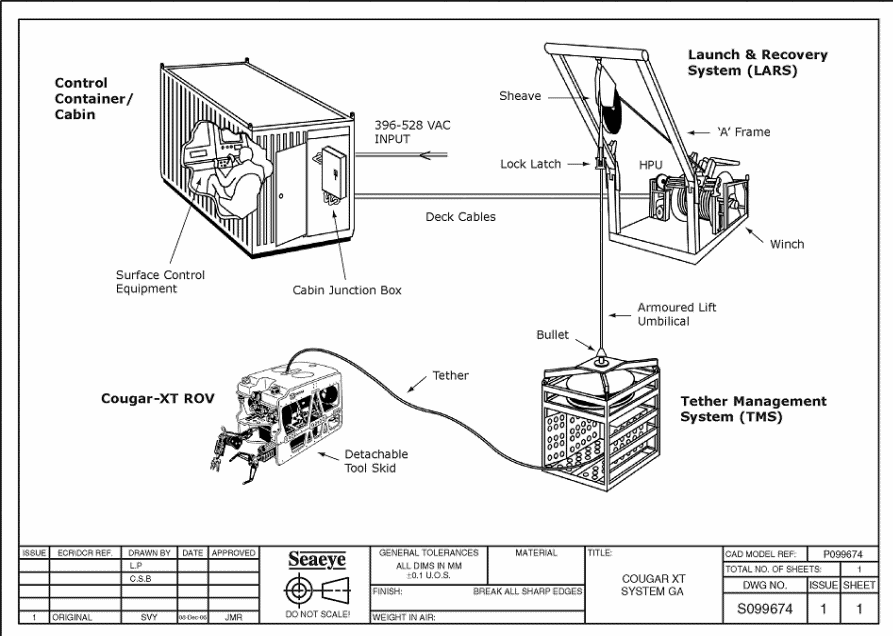

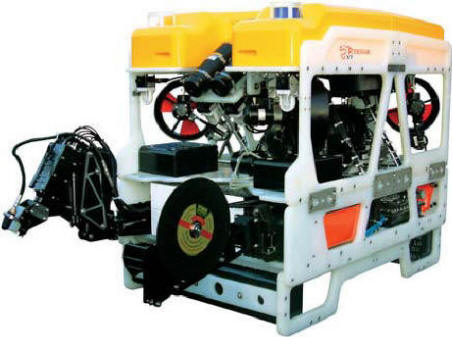

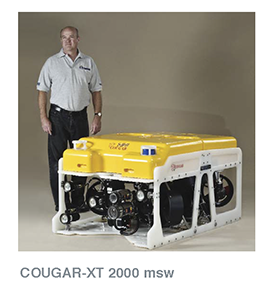

Seaeye Cougar-XT

 175 lbs /80 kg payload, 6,600 ft / 2000 m depth

The Saab Seaeye Cougar-XT is a highly flexible and hard working ROV platform for heavy duty tooling.  Survey, drilling, construction and salvage are fast and economical using the Cougar-XT.

Seaeye Cougar-XT Features:

  • Depth rating:  2000 m (seawater)
  • 170 kg forward thrust: 3.2 knots forward speed
  • Manipulator & cutter interfaces
  • CP Interface (Proximity or Contact)
  • Obstacle avoidance, multi beam, profiling or side scan sonar
  • Bathymetric systems
  • Fixed focus, zoom and stills cameras, up to 4 simultaneous video channels
  • Emergency strobes and beacons
  • Tracking systems
  • 3-phase tooling supply
  • Auxiliary connections providing telemetry & DC power for other accessories
  • Payload: 80 kg

Accessories for the Seaeye Cougar-XT (Partial list):

Control Cabin

Launch and Recovery System

Tether Management System Options

Snubber/Rotator

ROV in a Box Cabin and Storage container

Multi-Function Manipulator skid with grabber arm
Wheel Skid

Anvil Cable Cutter

Rotary Disk Cutter
Cleaning Brush
CP Probe
Cygnus UT Gauge
Emergency Strobe
Lock Latch
Multibeam Sonar
Profiling Sonars
Side Scan Sonar
Water Jet

Click HERE for inquiries


Seaeye Cougar-XTI

175 lbs / 80 kg payload, 10,000 ft / 3000 m depth

The Cougar-XTI is the deep rated version of the Cougar-XT cablable of work down to 3,000 meters. It features the new distributed intelligence control system "iCON".  Originally developed for military applications, the iCON system and the unique high frequency power supply system is a powerful addition to the commercial ROV operator.



Seaeye Cougar XTI Features:

  • Depth rating:  3000 m (seawater)
  • Self-diagnostics software
  • Reduced tether and umbilical diameter
  • Manipulator & cutter interfaces
  • CP Interface (Proximity or Contact)
  • Obstacle avoidance, multi beam, profiling or side scan sonar
  • Bathymetric systems
  • Fixed focus, zoom and stills cameras
  • Emergency strobes and beacons
  • Tracking systems
  • 3-phase tooling supply
  • Auxiliary connections providing telemetry & DC power for other accessories
  • Payload: 80 kg

Accessories for the Seaeye Cougar-XTi (Partial list):

Control Cabin

Launch and Recovery System

Tether Management System Options

Snubber/Rotator

Multi-Function Manipulator skid with grabber arm
Wheel Skid

Anvil Cable Cutter

Rotary Disk Cutter
Cleaning Brush

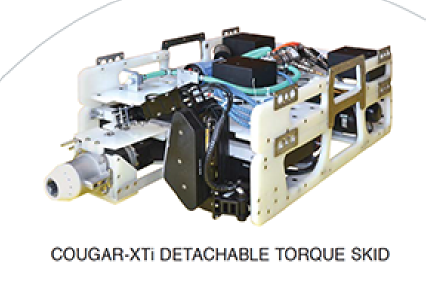

Torque Skid
CP Probe
Cygnus UT Gauge
Emergency Strobe
Lock Latch
Multibeam Sonar
Profiling Sonars
Side Scan Sonar
Water Jet

Click HERE for inquiries

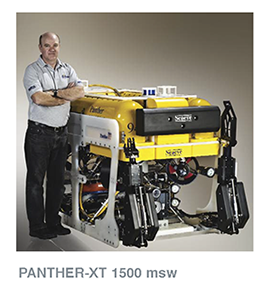

Seaeye Panther-XT
240 lbs / 110 kg payload, 5,000 ft / 1500 m depth

A more compact and cost effective alternative to hydraulic vehicles, the Panther-XT can be quickly reconfigured to the requirements of your drill support, pipeline survey, salvage and Inspection/Repair/Maintenance jobs.  Other applications for this popular vehicle include cable installation, NDT inspections, torpedo recovery, and rapid response submarine rescue.

Seaeye Panther-XT Features:

  • Depth rating:  5,000 ft / 1,500 m (seawater)
  • A wide selection of equipment interface options
  • High performance thrusters, 195 kgf forward thrust for >3 knots forward speed
  • Flux-gat compass and rate sensor
  • High accuracy (+/- 0.1%) depth sensor
  • Autopilot for depth and heading with auto altitude option
  • Up to four simultaneous video channels
  • Free swimming option with up to 1000 meter of soft umbilical
  • A-Frame or crane based launch and recovery system (LARS)
  • Stainless steel, bale arm type tether management system with up to 200 meters of tether
  • Payload: 240 lbs/ 110 kg

Accessories for the Seaeye Panther-XT (Partial list):

Control Cabin

Launch and Recovery System

Tether Management System Options

Snubber/Rotator

Wide variety of manipulator options

AX wellhead ring gasket removal tool (can be mounted under a standard manipluator skid)
Anvil Cable Cutter

Rotary Disk Cutter
Cleaning Brush

Torque Skid
CP Probe
Cygnus UT Gauge
Pipeline survey camera boom
Multibeam Sonar
Profiling Sonars
Side Scan Sonar
Water Jet

Click HERE for inquiries

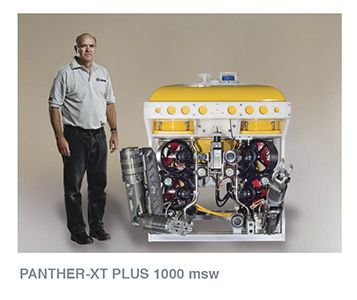

Seaeye Panther-XT Plus

105 kg payload, 1000 meter depth



Seaeye Panther Plus Features:

  • Max operating depth: 1000 meters
  • 220 kg forward thrust (bollard pull)
  • 170 kg lateral thrust
  • Weighing only 500 kg in air
  • 105 kg payload
  • 10 brushless DC thrusters with velocity feedback for superior control
  • Thruster power supplies split into 2 separate channels for redundancy
  • Auto heading and depth with auto altitude option
  • Two hydraulic manipulator interfaces
  • 12 function hydraulic solenoid valve pack
  • Seaeye high torque pan and tilt unit
  • Dual channel variable intensity, individually fused, 600 watts of lighting
  • Interface for survey sensors
  • 4 simultaneous video channels
  • Integral video overlay system

Click HERE for inquiries


Seaeye Leopard

105 kg payload, 1000 meter depth



Seaeye Panther Plus Features:

  • Max operating depth: 1000 meters
  • 220 kg forward thrust (bollard pull)
  • 170 kg lateral thrust
  • Weighing only 500 kg in air
  • 105 kg payload
  • 10 brushless DC thrusters with velocity feedback for superior control
  • Thruster power supplies split into 2 separate channels for redundancy
  • Auto heading and depth with auto altitude option
  • Two hydraulic manipulator interfaces
  • 12 function hydraulic solenoid valve pack
  • Seaeye high torque pan and tilt unit
  • Dual channel variable intensity, individually fused, 600 watts of lighting
  • Interface for survey sensors
  • 4 simultaneous video channels
  • Integral video overlay system

Click HERE for inquiries


Seaeye Jaguar--Half the weight yet greater performance than hydraulic ROVs

3000 meter depth rating

Seaeye Jaguar Features:

  • Max operating depth: 3000 meters
  • High output 12 in horizontal thrusters and 10 in vertical thrusters
  • Full instrumentation package
  • Auto heading, depth, pitch and roll, auto altitude when fitted with altimeter
  • 10 brushless DC thrusters with velocity feedback for superior control
  • High performance TMS and LARS
  • Powerful hydraulic tooling system

Click HERE for inquiries


To Learn More (check the box next to the product of interest):

Saab Seaeye Sea Wasp Anti-IED ROV

Saab Seaeye Falcon/Falcon F2/Falcon DR

Saab Seaeye Tiger/Lynx

Saab Seaeye Cougar-XT Compact/Cougar-XT/Cougar-XTI

Saab Seaeye Panther-XT/ Panther-XT Plus

Saab Seaeye Leopard

Saab Seaeye Jaguar

Saab Seaeye Sea Wasp



  *indicates required field
Title: *
Name: *
Job Title:
Organization: *
Country or Territory: *
E-mail: *
Phone: *
Address:

Details of your requirement:





Copyright 2015 Symphotic TII Corporation
Last modified: 10/17/16
