Symphotic TII Corporation is pleased to offer a comprehensive line instruments, cameras, and vehicles for a wide variety of scientific, industrial, and inspection applications.  Now take a closer look at your most challenging underwater tasks with our ROVs, AUVs, cameras and scanning/imaging sonar systems.

The Seaeye Falcon ROV with Robotic Shark for a major motion picture.

Click the titles or the pictures below for more information.


The Saab-Seaeye ROVs, Saab AUVs





ROVs for deep waters and heavy payloads.  Please click here to view more information.

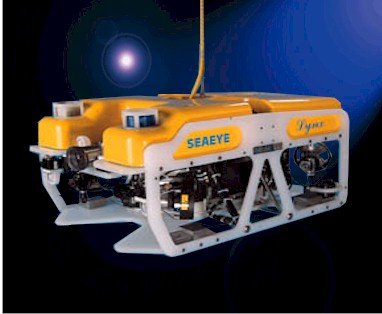

For the most demanding ROV applications, please contact us about the Seaeye Falcon, Panther, Cougar, and Lynx ROVs.  We offer a full range or ROVs from portable systems to the most powerful work-class systems. In addition, we encourage you to consult with us regarding your requirements for Autonomous Underwater Vehicles.

Saab Seaeye Falcon Website




The 881A-GS and 881L-GS High Performance Gyro Stabilized Imaging Sonar.

Gyro-stabilization of the Imagenex Model 881L-GS and the 881A-GS makes these high resolution sonars into a systems capable of crystal clear visualization from moving ROVs without the blurring effects of host vehicle rotation. An advanced, low drift gyro is integrated directly into the sonar head, so the sonar can now compensate for vehicle motion in real time with unprecedented accuracy, stability, and robustness.
The enhanced capabilities of the 881L-GS and 881A-GShave not compromised the performance of the sonar. Using Ethernet communications, these all-in-one, high performance digital imaging sonar can still exceed 100 samples per second on short range at up to 2 mm range resolution, and can auto-adjust acoustic frequency and resolution to scan up to a 200 m radius, 360į surrounding area.
The Model 881L-GS and 881A-GS feature low power consumption, simple set-up, and small size that make it an ideal tool for large work ROVís and small inspection vehicles. It is also a powerful and convenient drop sonar and borehole inspection package: just add a laptop computer and power supply and run the included Imagenex software.



The NEW 878 High Resolution Towable Sonar.

Simultaneous dual frequency, high resolution, LAN compatible with built in GPS, track plotter, and optional orientation module including depth,temperature, pitch, roll and heading sensors.  Also available with optional echo sounder.

The SportScan Dual Frequency Sonar        The Yellowfin Triple Frequency Sonar

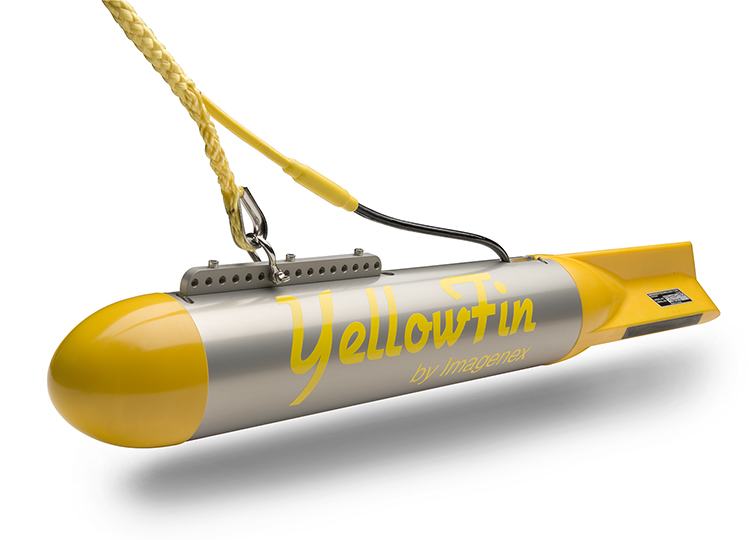

The Sportscan is an economical scanning sonar system is available in single frequency and dual frequency models.  A deeper water version, the Yellowfin, is also available.

The 881A Imaging Sonar

We also offer a full line of sonar systems for ROVs and stand alone use.

The Imagenex Website


The Sonar Bell Sonar Target:

SonarBell in operation

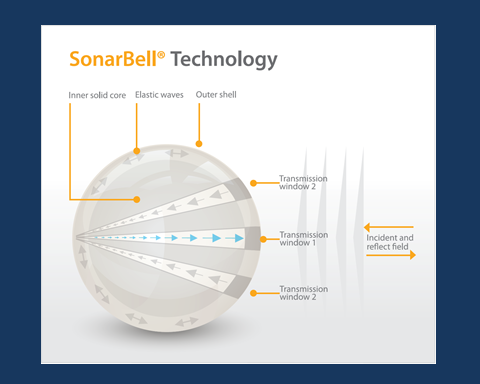

SonarBell operates by focusing and reflecting sound energy back to its source, much as a lens or mirror can focus light. Just like a lens or mirror SonarBell is a completely passive device.



By focusing and re-radiating the sound energy back in the direction from which it came a 200mm SonarBell can deliver the same sonar target strength as a 2m diameter metal plate whilst being relatively light weight and easy to handle.



In contrast to other technologies used for the location of assets SonarBell does not suffer from the intermittent reflection of corner reflectors nor does it require the battery replacement cycle of transponders.

.


Digital Edge DVD

The Digital Edge System allows you to record video and overlay with a sophisticated but easy to use interface.  The final product is a customer-deliverable hard disk.



Digital Edge Website

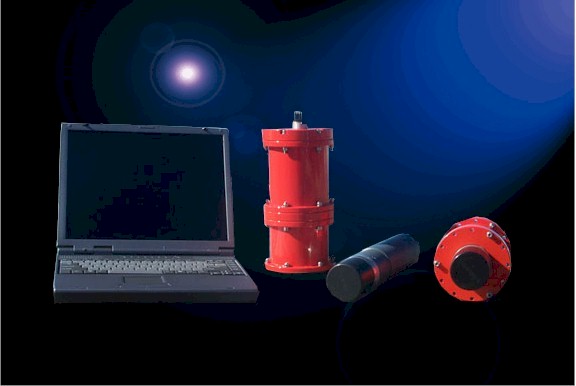

The Tracklink 1500 from LinkQuest, Inc.



The Tracklink 1500 is a USBL Acoustic Tracking System with Broadband Acoustic Spread Spectrum technology for underwater tracking and communication.  Please click here to view more information.
